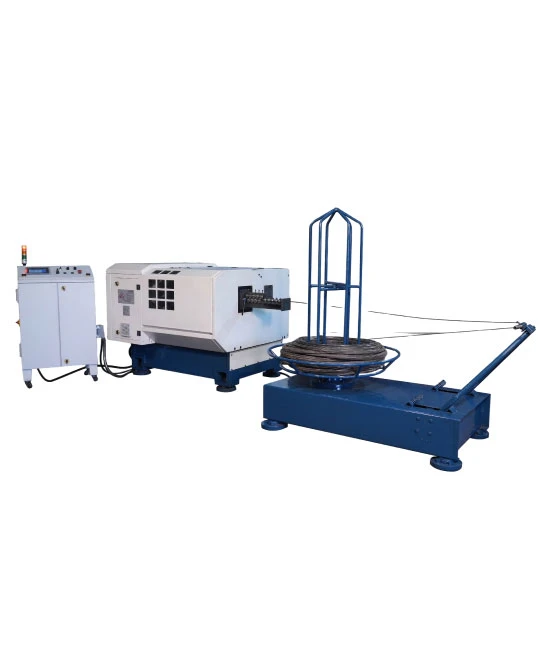

Shs-90 High Speed Nail Machine


The Wire Nail Machine SHS-90, produced and supplied by Super Nail Machine, is engineered to the highest standard to enhance nail production and reduce overall production cost.

Utilizing the latest technology, our wire nail making machine stands out in the automation and electrification industry.

Based in Rajkot, Gujarat, Super Nail Machine manufactures and supplies the premier Wire Nail Machine SHS-90.

Our machine is built to world-class standard, establishing us as the leading manufacturer of Wire Nail Making Machine SHS-90 in Rajkot, Gujarat.

  • This High Speed wire nail machines retained basic design and simple operation for Friendly use.
  • Balanced critical parts results low vibration & enhance life.
  • All Lubrication parts are served by centralized automated cyclic lubrication system for long life.
  • A new feeding system permits the use of large wire bundle and maintains close tolerance.
  • Harden ground wedge type die box for longer life and easy low cost refurbishing.
  • Round indexable Gripping dies with Eleven Grooves enabling eleven times longer life without any reprocessing.

Product Specification

Machine Model No: SHS -90

Rated Power: 10 HP

Actual Power Rating: 6 HP

Out Put: 760 Nails Per Minute Max.

Wire Diameter: 2.0 – 3.8 mm

Nail Length: 38 – 90 mm

Machine Size: 1500 x 1300 x 1000 mm

Machine Approx Weight: 2850 kg

Skilled Operator Demand: 1 Skilled Can Operate 8 Machine

Special Features: PLC Mitsubhi Control Based, AC Drive Mitsubhi Make, Motor Hindustan, Auto Control Lubricating Oil, 11 Sensors Control Safety And Count The Nails
